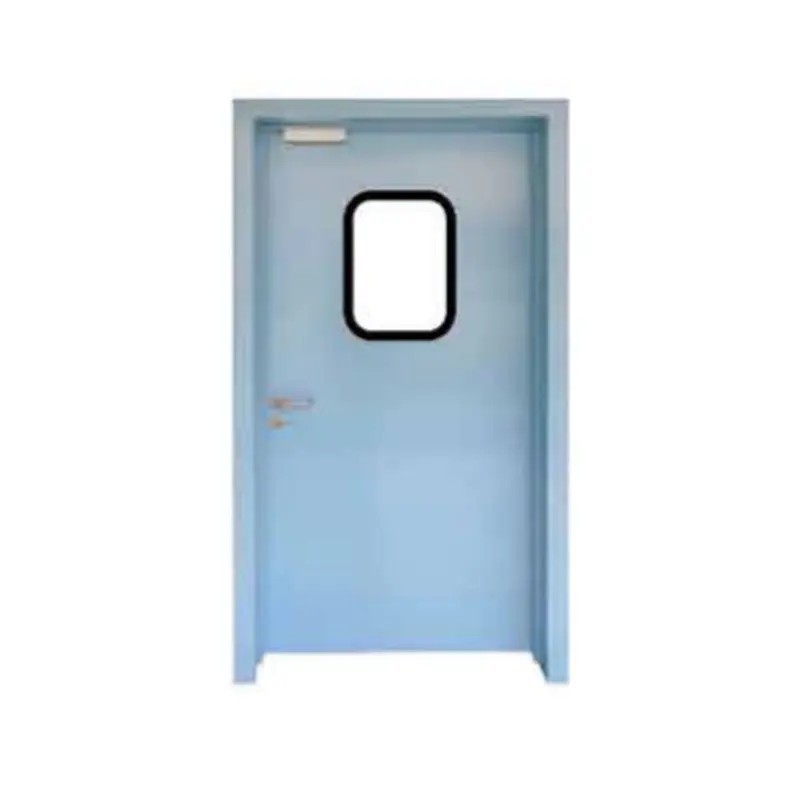

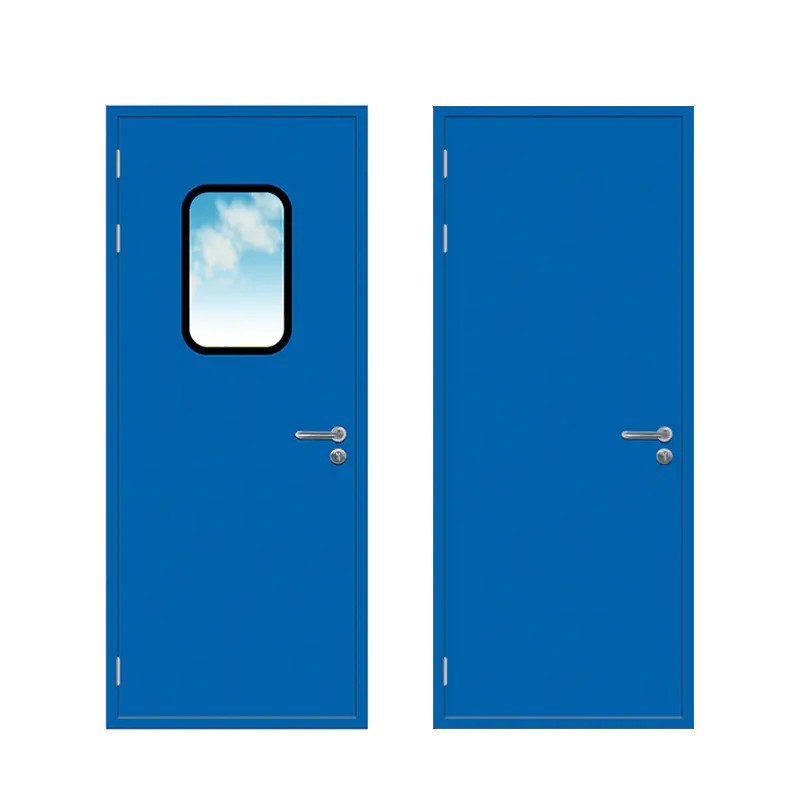

Civil Engineering Cleanroom Single Doors

Door frame: 1. 5mm thick galvanized plate
Door panel: 1. 0mm thick galvanized plate
Filling: 48mm thick paper honeycomb
Hinge: 304 stainless steel dumpling chains 3 per door panel
Door lock: 304 stainless steel handle lock 2-sided key
Sweeping strips: The bottom has lifting sweeping strips 12mm away from the ground
Sealing strip: Door panel with D-shaped polyurethane two-component sealing strip
Windows: 400*600 double-layer windows with embedded stainless steel
Broken glass: 20mm black edge right angle tempered glass, YUANDA 3c sample, square on the outside and square on the inside
Enhanced parts: Door closers, locks, and hinges have been strengthened
Connection method: Door frame sealing plate flush type
Color: To be determined
Door closer: Optional (priced separately)



Handmade Steel Cleanroom Double Door

Dimensions of door frame: 1500×2100
Net valid size: 1400×2050
Door panel: 1.0mm zinc-free galvanized plate
Door frame: 1.0mm zinc-free galvanized sheet
Filling: 48mm thick flame retardant paper honeycomb
Window: 386×586, 5mm thick, hollow double layer, 20mm black edge arc tempered glass, embedded stainless steel liner, YUANDA 3c sample, R=101
Hinge: 304 stainless steel flag hinge (3 for each door panel) Door lock: 304 stainless steel 55 round head handle lock (2 keys)
Sweeping strip: bottom with lifting sweeping strip (12mm away from the ground) Connection: flush type
Door closing device: the position of the door closing device is strengthened with only the latch, not the lower latch
Color: To be determined
